Type de roulement: deux roulements à billes
matériau: turbines et;Cadre: plastique (UL94V - 0)
plomb: ul1007 awg26
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Ligne rouge positive (+)
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Noir négatif一)
poids: 44,g

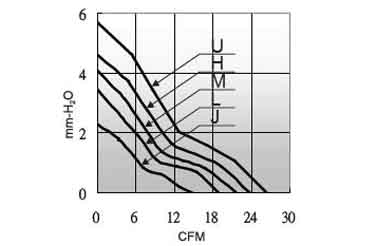

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA06015_12J | B/S | 12 | 7.0~13.2 | 0.1 | 3000 | 15 | 0.09 | 24 |
| WSA06015_12L | B/S | 12 | 7.0~13.2 | 0.12 | 3500 | 19 | 0.14 | 29 |
| WSA06015_24L | B/S | 24 | 14.0~26.4 | 0.06 | 3500 | 19 | 0.14 | 29 |
| WSA06015_12M | B/S | 12 | 7.0~13.2 | 0.14 | 4000 | 21.7 | 0.16 | 32 |
| WSA06015_24M | B/S | 24 | 14.0~26.4 | 0.08 | 4000 | 21.7 | 0.16 | 32 |
| WSA06015_12H | B/S | 12 | 7.0~13.2 | 0.18 | 4500 | 23.1 | 0.18 | 35 |
| WSA06015_24H | B/S | 24 | 14.0~26.4 | 0.1 | 4500 | 23.1 | 0.18 | 35 |
| WSA06015_12U | B/S | 12 | 7.0~13.2 | 0.26 | 5000 | 26.5 | 0.23 | 37 |
| WSA06015_24U | B/S | 24 | 14.0~26.4 | 0.11 | 5000 | 26.5 | 0.23 | 37 |
