Type de roulement: deux roulements à billes
matériau: turbines et;Cadre: plastique (UL94V - 0)
plomb: ul1007 awg26
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Ligne rouge positive (+)
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Noir négatif一)
poids: 86,0 G

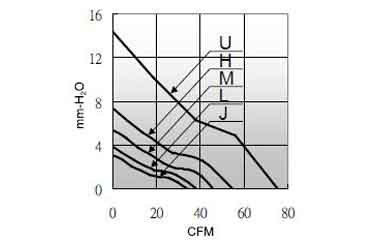

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA08020_12J | B/S/F | 12 | 7.0~13.2 | 0.14 | 1500 | 26 | 3.1 | 28 |
| WSA08020_12L | B/S/F | 12 | 7.0~13.2 | 0.18 | 2000 | 34.6 | 3.9 | 31 |
| WSA08020_24L | B/S/F | 24 | 14.0~26.4 | 0.1 | 2000 | 34.6 | 3.9 | 31 |
| WSA08020_12M, | B/S/F | 12 | 7.0~13.2 | 0.23 | 3000 | 51.9 | 5.4 | 36 |
| WSA08020_24M | B/S/F | 24 | 14.0~26.4 | 0.14 | 3000 | 51.9 | 5.4 | 36 |
| WSA08020_12H | B/S/F | 12 | 7.0~13.2 | 0.35 | 3500 | 60.5 | 7.4 | 40 |
| WSA08020_24H | B/S/F | 24 | 14.0~26.4 | 0.18 | 3500 | 60.5 | 7.4 | 40 |
| WSA08020_12U | B/S/F | 12 | 7.0~13.2 | 0.45 | 4000 | 69.2 | 14.5 | 44 |
| WSA08020_24U | B/S/F | 24 | 14.0~26.4 | 0.3 | 4000 | 69.2 | 14.5 | 44 |
