Type de roulement: deux roulements à billes
matériau: turbines et;Cadre: plastique (UL94V - 0)
plomb: ul1007 awg26
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Ligne rouge positive (+)
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Noir négatif一)
poids: 31,5g

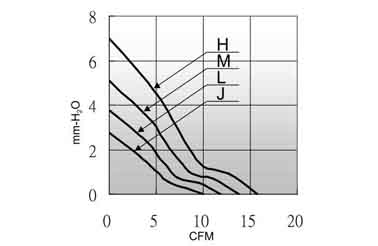

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA07015_12J | B/F | 12 | 7.0~13.2 | 0.08 | 2000 | 5.39 | 4.31 | 27.7 |
| WSA07015_12L | B/F | 12 | 7.0~13.2 | 0.12 | 2500 | 6.73 | 5.39 | 34.62 |
| WSA07015_24L | B/F | 24 | 14.0~26.4 | 0.06 | 2500 | 6.73 | 5.39 | 34.62 |
| WSA07015_12M | B/F | 12 | 7.0~13.2 | 0.2 | 3000 | 8.08 | 6.47 | 41.5 |
| WSA07015_24M | B/F | 24 | 14.0~26.4 | 0.09 | 3000 | 8.08 | 6.47 | 41.5 |
| WSA07015_12H | B/F | 12 | 7.0~13.2 | 0.3 | 3500 | 9.43 | 7.54 | 48.4 |
| WSA07015_24H | B/F | 24 | 14.0~26.4 | 0.12 | 3500 | 9.43 | 7.54 | 48.4 |
