Type de roulement: deux roulements à billes
matériau: turbines et;Cadre: plastique (UL94V - 0)
plomb: ul1007 awg26
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Ligne rouge positive (+)
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Noir négatif一)
poids: 57,0 G

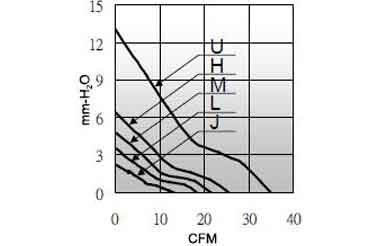

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA06025_12J | B/S/F | 12 | 7.0~13.2 | 0.06 | 3100 | 14.1 | 2.5 | 26 |
| WSA06025_24J | B/S/F | 24 | 14.0~26.4 | 0.07 | 3100 | 14.1 | 2.5 | 26 |
| WSA06025_48J | B/S/F | 48 | 28.0~56.0 | 0.05 | 3100 | 14.1 | 2.5 | 26 |
| WSA06025_12L | B/S/F | 12 | 7.0~13.2 | 0.08 | 3600 | 18.5 | 3.6 | 31 |
| WSA06025_24L | B/S/F | 24 | 14.0~26.4 | 0.09 | 3600 | 18.5 | 3.6 | 31 |
| WSA06025_48L | B/S/F | 48 | 28.0~56.0 | 0.06 | 3600 | 18.5 | 3.6 | 31 |
| WSA06025_12M | B/S/F | 12 | 7.0~13.2 | 0.1 | 4250 | 21.5 | 4.8 | 34 |
| WSA06025_24M | B/S/F | 24 | 14.0~26.4 | 0.13 | 4250 | 21.5 | 4.8 | 34 |
| WSA06025_48M | B/S/F | 48 | 28.0~56.0 | 0.07 | 4250 | 21.5 | 4.8 | 34 |
| WSA06025_12H | B/S/F | 12 | 7.0~13.2 | 0.18 | 5000 | 25.6 | 6.5 | 40 |
| WSA06025_24H | B/S/F | 24 | 14.0~26.4 | 0.15 | 5000 | 25.6 | 6.5 | 40 |
| WSA06025_48H | B/S/F | 48 | 28.0~56.0 | 0.1 | 5000 | 25.6 | 6.5 | 40 |
