Type de roulement: deux roulements à billes
matériau: turbines et;Cadre: plastique (UL94V - 0)
plomb: ul1007 awg26
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Ligne rouge positive (+)
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Noir négatif一)
poids: 56,0 G

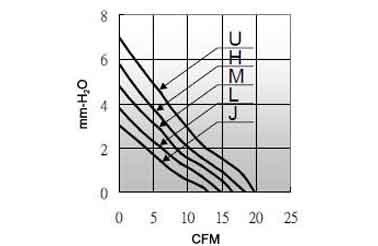

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA06020_12L | B/S | 12 | 7.0~13.2 | 0.09 | 3600 | 14.8 | 3.8 | 26 |
| WSA06020_12M | B/S | 12 | 7.0~13.2 | 0.11 | 4000 | 16.4 | 4.8 | 29 |
| WSA06020_12H | B/S | 12 | 7.0~13.2 | 0.13 | 4400 | 18.1 | 5.8 | 31 |
| WSA06020_12U | B/S | 12 | 7.0~13.2 | 0.17 | 4800 | 19.6 | 6.9 | 33 |
| WSA06020_24L | B/S | 24 | 12月28日 | 0.05 | 3600 | 14.8 | 3.8 | 26 |
| WSA06020_24M | B/S | 24 | 12月28日 | 0.07 | 4000 | 16.4 | 4.8 | 29 |
| WSA06020_24M | B/S | 24 | 12月28日 | 0.09 | 4400 | 18.1 | 5.8 | 31 |
| WSA06020_24M | B/S | 24 | 12月28日 | 0.11 | 4800 | 19.6 | 6.9 | 33 |
